click to enlarge

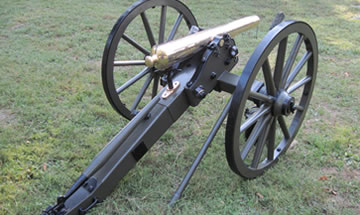

Here's an example of 1st Model Prairie Carriage with a bronze Confederate Mountain Rifle barrel on it that was built by one of my customers. This carriage primarily uses the 12 Pdr Mountain Howitzer barrel, but this combination does look good! I think when someone sees the picture they will be impressed with the quality.


1st Model Prairie Carriage:
Click photos to enlarge

Part

Qty
Weight
Price Each
1
$100.00
Elevating Screw 1   $120.00
  Linch Pin 2   $18.00
  Axle (Steel Straight) 1   $250.00
  Axle Band 2   $18.00
  Trunnion Plate & Cap Square 2   $300.00
  Key Bolt 2   $18.00
  Chin Bolt 2   $18.00
  Drag Hook LH 1   $24.00
  Drag Hook RH 1   $24.00
  Cap Square Key w/Chain Eye Pin 2   $19.00
  Axle Strap 1   $60.00
  Axle Strap Wedge Washer 1   $5.00
  Understrap 1   $55.00
  Understrap Wedge Washer 2   $6.00
  Belts 5   $15.00
  Staples 5   $5.00
  Large Rondell 2   $25.00
  Small Rondell 4   $20.00
  Lunette 1   $190.00
  Trail Plate 1   $35.00
  Folding Handspike Socket, Base, & Key 1   $175.00
  Trail Spike 1   $45.00
  Trail Handle 2   $35.00
  Wheel Guard Plate 2   $12.00
  Shoulder Washer 2   $14.00
  Linch Washer 2   $14.00
  Bolts, Nuts, & Washers Package 1   $200.00
